• S.S 304 Pre-fabricated Double Skin with inner chamber Satin finish
• Swing type double doors with glass view panel
• Controls with Pcb 12v dc
• 12vdc magnet interlocking either any one door will open at time
• Led indication Red & Green Bothside
• 12v Buzzer indication when door OPEN & CLOSE
• S.S Door Handles
• Illumination Led Fitting
• U.V Lamp for cross contamination
• Push to open switch
• Door catcher
“iclean” Static Passbox are very effective solution to transfer samples in between the Cleanrooms,R&D labs, it ensures the cross contamination in clean environment without much personnel Movement.Static Passbox is specifically designed transfer the specified samples without much personnel movement. Controlling the entrance of particulate air contamination into the clean room and other controlled environments is supreme in order to continue the integrity of products and processes. Personnel movement is the most important issue which must be controlled.
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-SPB-450 | W450 X D450 X H450mm |
ICAS-SPB-600 | W600 X D600 X H600mm |
ICAS-SPB-750 | W750 X D750 X H750mm |
ICAS-SPB-900 | W900 X D900 X H900mm |
*Customize made available based on user requirement
• Precision design and finish
• High Grade stainless steel construction
• Electronic control interlocking
• Static and Dynamic passbox models
• Floor and Wall mounted Design
• UV Light along with hour meter
• Buzzer indication for door open
• Led indication for door open & close
• Magnehelic guage for monitoring air pressure inside plenum
• Swing type doors bothside with view glass
• Fully customized design
iclean” Dynamic Pass box are designed for very effective solution major role in pharma industry as they permit materials to be transferred into the production area without much personnel movements.
Dynamic pass box is specifically designed for material transfers often used in the Pharma industry,Bio-technology,Health care industry such as for entry & exit of raw materials and finished products. It also designed with an interlocking doors such as transfer materials from Non sterile to sterile area. In the dynamic passbox the airflow heap filter system has a positive pressure to ensure cross flow contamination air into the cleanroom application.
Dynamic passbox are widely used in the cleanroom application by it also depends on the user and there requirement basis.
We also offer the customized design quality of the product consider manufacturers that offer comprehensive support services, including installation, validation, and after-sales service, to ensure that your dynamic pass box operates effectively over its lifespan
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-SPB-450 | W450 X D450 X H450mm |
ICAS-SPB-600 | W600 X D600 X H600mm |
ICAS-SPB-750 | W750 X D750 X H750mm |
ICAS-SPB-900 | W900 X D900 X H900mm |
*Customize made available based on user requirement

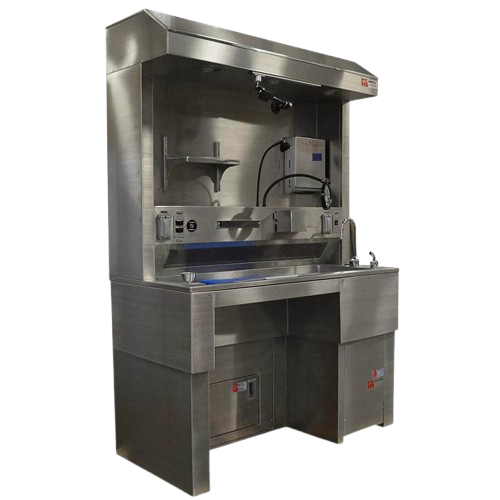

“iclean” Pathology workstation is a specialized, multifunctional unit used in clinical laboratories and medical facilities for the examination, processing, and analysis of histological and cytological specimens.
Histopathology workstations are designed to provide a controlled and sterile environment to ensure sample integrity and prevent contamination.
Grossing area: For specimen dissection
Tissue embedding stations: For tissue preparation
Microtome sectioning equipment: For sectioning
Slide staining areas: For staining
Microscope: For microscopic examination
Pathology workstations often have a ventilation system to protect the operator from harmful gases. They may also have adjustable height settings and ample workspace to provide a safe and ergonomic environment.
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-HGS-1200 | W4’ X D2’ X H3’FT |
ICAS-HGS-1500 | W5’ X D2’ X H3’FT |
ICAS-HGS-1800 | W6’ X D2’ X H3’FT |
*Customize made available based on user requirement
“iclean” Fume hoods are primarily used in laboratories to reduce or eliminate exposure to hazardous chemicals, biological hazards, or physical hazards. They are often used when working with toxic compounds or compounds with a boiling point below 120°C.
Fume hoods are semi-enclosed areas with a constant minimum air flow that is connected to an exhaust fan. The airflow in a fume hood is typically maintained at a constant velocity of 80–100 fpm, regardless of the sash height. The sash, or window, on the fume hood allows the worker to view and manipulate objects within the enclosure while keeping fumes away from their face.
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-FUH-900 | W900 X D750 X H900mm |
ICAS-FUH-1200 | W600 X D600 X H900mm |
ICAS-FUH-1500 | W1500 X D750 X H900mm |
ICAS-FUH-1800 | W1800 X D750 X H900mm |
*Customize made available based on user requirement
The “iclean” Dispensing Booth is purifying apparatus. Unidirectional vertical/Reverse laminar flow Class ISO5 (Class100).
“iclean” Powder containment booths are used to control the hazardous emissions of powders, dust or vapors during powder dispensing, product sampling, or bag dispensing, etc., without risk to the operator or environment. The downdraught prevents airborne dusts caused by weighing and dispensing operations rising into the operator’s breathing zone. The air forced downwards is extracted at low level into the booth’s filtration system where dust particles are contained at each level of filtration prior to being re-circulated back into the booths’ air stream. The focus weighing room is one kind of specialized working room which particularly used in specimen (sampling), analysis industry and weighting, it control the working area powder to prohibit them off the working room. The sampling / dispensing booth is special equipment to control the powder floating, protect user (operators) not breath the user operated powder (User Safety).
The center weighing room’s working area will be kept the air-flow as unidirectional reverse negative pressure condition, exhaust 10% re-circulated air. The small chamber air in center weighing room will pass through three grade filter system HEPA (high efficiency filter will remove 99.997% granules ≥0.003um) to make personal circulated. It controls the powder floating, mixture surplus during process of powder examination, and mixture filling. It can protect the WORKING environment and USER safety.
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-DB-900 | W3’ X D3’ X H6.5’FT |
ICAS-DB-1200 | W4’ X D4’ X H6.5’FT |
ICAS-DB-1500 | W6’ X D4’ X H6.5’FT |
ICAS-DB-1800 | W8’ X D6’ X H6.5’FT |
*Customize made available based on user requirement

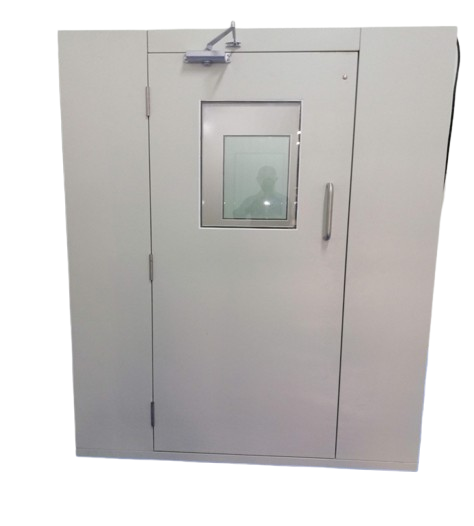

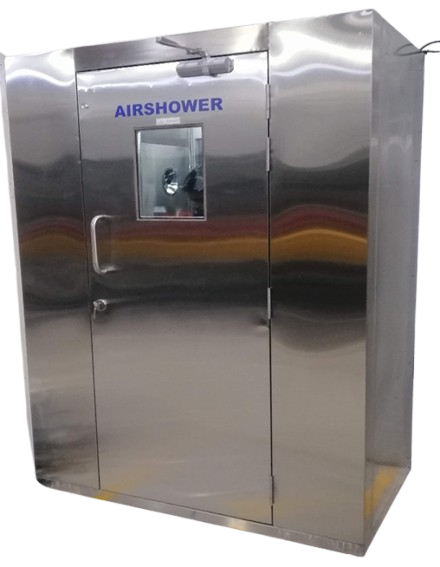

“iclean”Cleanroom air showers are used in many industries to protect people and products from contamination.
Cleanroom air showers are self-contained chambers that use HEPA-filtered air to remove particles from people before they enter a cleanroom. They are typically installed at the entrance to a facility, but may be needed at multiple entry points or at both the entrance and exit.
Pharmaceuticals Contamination in pharmaceutical processes can affect test results and consumer health
Aerospace Excess particles can damage aerospace sensors or cause electrical equipment to malfunction
Medical research Air showers are often used in cleanrooms with sensitive equipment, such as those involving toxic fumes or biohazards Precision manufacturing Sensitive products like sensors, radar systems,
computer hardware require a controlled environment Microelectronics and semiconductors Air showers are very popular in the semiconductor industry
Personnel gown up before entering the air shower to encapsulate any particles on their clothes or body. The air shower then blows HEPA-filtered air on them for 20-40 seconds. The doors of the air shower are typically interlocked so only one door can be open at a time
MODEL NO | INNER WORKING CHAMBER DIMENSION |
|---|---|
ICAS-ASH-1000 | W800 X D1000 X H2000mm |
ICAS-ASH-1500 | W800 X D1500 X H2000mm |
ICAS-ASH-2000 | W800 X D2000 X H2000mm |
*Customize made available based on user requirement
We are a trusted provider of advanced cleanroom solutions, offering a wide range of high-quality products.
